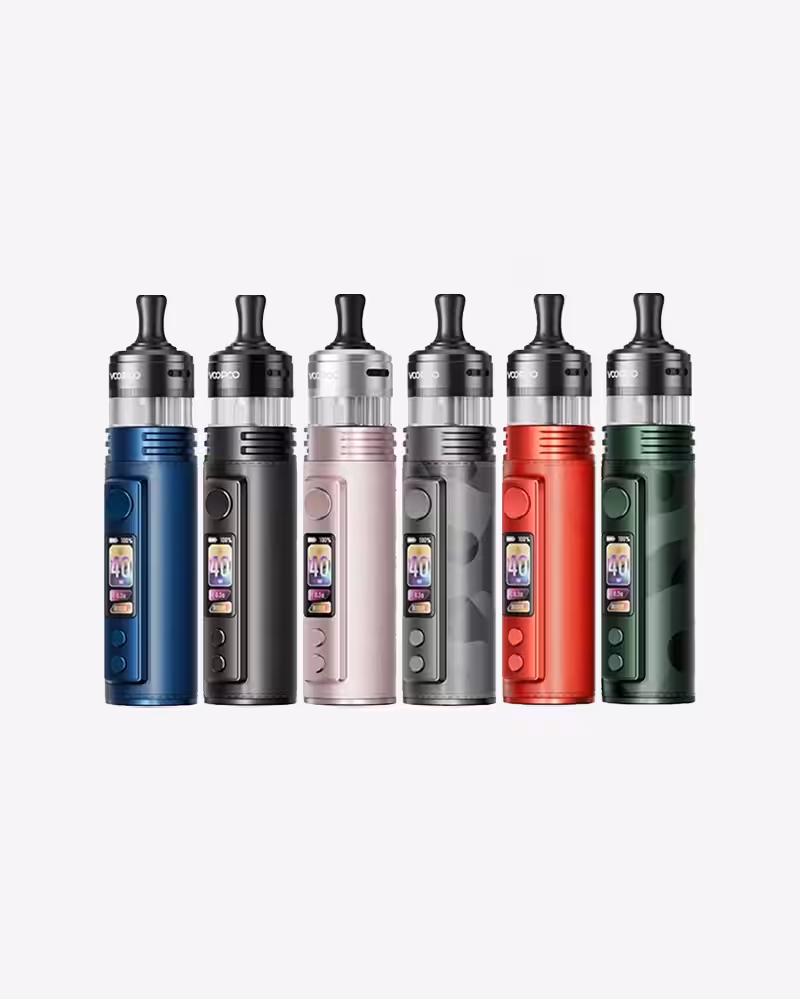

Voopoo DRAG H40 Pro Starter Kit

VOOPOO Drag H40 Pro Starter Kit – Available at Canada Vapes

The VOOPOO Drag H40 Pro is a compact 40W pod mod built around a significantly larger battery and VOOPOO’s current PnP X Platform. It combines a 2450 mAh built-in battery, 5 to 40W adjustable output, a 5 mL PnP X cartridge, 0.72-inch TFT screen, and 5V/2A USB-C charging in a rounded body wrapped in leather.

Compared with the earlier Drag H40, the Pro increases battery capacity from 1500 mAh to 2450 mAh and moves to the PnP X cartridge and coil ecosystem. VOOPOO describes the battery increase as approximately 63% and claims up to five days of use under its testing conditions. Actual runtime varies with coil resistance, wattage, and frequency of use.

Key Features

• 2450 mAh built-in battery
• 5 to 40W adjustable output
• 5 mL PnP X cartridge
• MTL and DTL cartridge compatibility
• Full PnP X coil platform support
• 0.72-inch TFT display
• 5V/2A USB-C fast charging
• Pass-through vaping support
• Button activation
• Leather-wrapped cylindrical body
• Side-fill cartridge
• Six built-in safety protections

2450 mAh Battery

Battery capacity is one of the headline upgrades.

The Drag H40 Pro contains a 2450 mAh internal battery, which VOOPOO states is 63% larger than the previous generation.

Charging is rated at 5V/2A, and the device supports pass-through operation while connected to power.

5 To 40W Adjustable Output

The Drag H40 Pro provides an output range of 5W to 40W.

Power can be adjusted using dedicated controls beneath the display, making it easy to match the wattage to the installed PnP X coil.

This is useful because the compatible coils span a wide range of resistances and draw styles.

PnP X Platform

VOOPOO’s PnP X Platform is central to the Drag H40 Pro.

The device works with both:

• PnP X Cartridge MTL
• PnP X Cartridge DTL

Both are available in 5 mL standard versions and 2 mL TPD variants.

This means the H40 Pro can shift from a tighter inhale to a much more open setup simply by changing cartridge and coil combination.

Compatible PnP X Coils

The PnP X family includes:

• 0.15Ω DTL: 60–80W
• 0.2Ω DTL: 40–60W
• 0.3Ω DTL/RDL: 32–40W
• 0.45Ω RDL: 25–32W
• 0.6Ω MTL/RDL: 18–23W
• 0.8Ω MTL: 12–16W
• 1.0Ω MTL: 10–13W

Because the Drag H40 Pro is limited to 40W, the 0.3Ω through 1.0Ω options are the practical matches within the device’s power range. The 0.15Ω and 0.2Ω coils are part of the broader PnP X platform but require power above what the H40 Pro can provide for their full recommended range.

That distinction is important when choosing replacement coils.

0.72-Inch TFT Screen

The Drag H40 Pro uses a 0.72-inch TFT display.

The screen provides clear information for adjusting wattage and monitoring the device.

Physical button controls keep operation straightforward, and VOOPOO includes a dual-button lock/unlock function to reduce accidental setting changes.

Leather-Wrapped Design

VOOPOO uses a rounded cylindrical chassis wrapped almost completely in leather.

The design is meant to provide more grip and a warmer hand feel than bare metal, while keeping the device relatively compact.

Device height varies slightly depending on which cartridge is installed:

• MTL setup: approximately 116.5 x 27.5 mm
• DTL setup: approximately 111.5 x 27.5 mm

Safety Protections

The Drag H40 Pro incorporates six protections:

• Overtime protection
• Overtemperature protection
• Overcharge protection
• Low-battery protection
• Output over-current protection
• Short-circuit protection

What Comes In The Box

The standard MTL package contains:

• 1 x Drag H40 Pro device
• 1 x PnP X MTL cartridge, 5 mL
• 1 x PnP X 0.6Ω coil, pre-installed
• 1 x PnP X 0.8Ω coil
• 1 x PnP X Platform card
• 1 x USB Type-C cable
• 1 x User manual

Frequently Asked Questions

What Is The Maximum Power Of The Drag H40 Pro?

40W.

Which Coil Comes Pre-Installed In The Standard Drag H40 Pro Kit?

The official standard package uses a PnP X 0.6Ω coil pre-installed, with a 0.8Ω spare.

Is The Drag H40 Pro Compatible With PnP X Coils?

Yes. However, always choose a coil whose recommended wattage falls within the device’s 40W maximum output.

Does Drag H40 Pro Support MTL And RDL?

Yes. The PnP X cartridge platform covers both tighter MTL and more open RDL/DTL configurations.

Can I Vape While It Is Charging?

VOOPOO lists pass-through vaping as supported.
